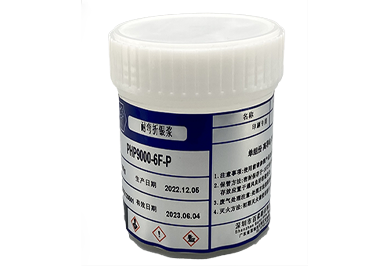

Bending Resistance Silver Paste Of Screen Printing

click：

Material Information

PHP9000-6F-P is electric conductive silver paste, which is a high-precision screen printing silver paste conforming to RoHS standards. The paste has excellent adhesion, hardness, bending resistance after curing.

Material Advantage

High Electrical Conductivity

Excellent Adhesion Performance

High Precision Screen Printing

Material Composite & Formula Can Be Customized

High Electrical Conductivity

Excellent Adhesion Performance

High Precision Screen Printing

Material Composite & Formula Can Be Customized

Application

Material Trait

· Meet 0.1-1mm linewidth high-precision printing

· Short time low temperature quick curing

· High adhesion with various substrates basic material

· Excellent electric conductivity performance

· Material composite and formula can be customized and differentiated

Specification

S/N	Test Items	Test Standard	Test Result	Test Method
1	Appearance	Silver gray color fluid	/	Visual inspection
2	Viscosity	300±100dpa.s	270dpa.s	VT-06 @25℃
3	Thixotropic index	4±1	4.2	Antonpa MCR52 0.5/10rpm
4	Adhesion	5B	5B	100 cell grade，3M 600 PET-Film
5	Volume Resistance	<50μΩ.cm	17μΩ.cm	140℃X40min Low resistance tester
6	Bending Resistance	100 times	>200 times	R=1.5mm 180° △R/R<30%

S/N	Test Items	Test Standard	Test Result	Test method
1	Appearance	Silver gray color fluid	/	Visual inspection
2	Viscosity	300±100dpa.s	270dpa.s	VT-06 @25℃
3	Thixotropic index	4±1	4.2	Antonpa MCR52 0.5/10rpm
4	Adhesion	5B	5B	100 cell grade，3M 600 PET-Film
5	Volume Resistance	<50μΩ.cm	17μΩ.cm	140℃X40min Low resistance tester
6	Bending Resistance	100 times	>200 times	R=1.5mm 180° △R/R<30%
