Void Filling Silver Paste For Metal Mesh

click：

Material Information

PHP900-6F-A is the specific nano silver electric conductive paste that is the first choice for making large touch screen by metal mesh technology. It is one of the material technology as electric conductive silver ink series at Baroy. Consists of very fine silver particles and thermoplastic/thermosetting resins. Fully adapted to the spraying process, low irritating odor, high printability, high oxidation resistance, good printable performance, high electrical conductivity, good hardness and strong adhesion to the basic material such like PET.

Material Advantage

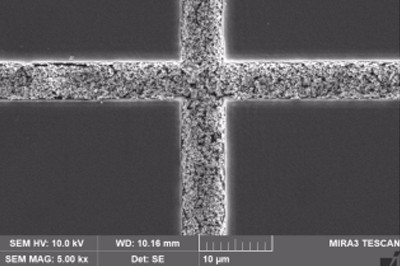

Easy to fill metal mesh 3-5um grooves/void(Silver Circuit Width )

Curing in low temperature in short time

According to the specific process technology of customers, differentiated customization

High adhesion to a variety of substrates or basic material

Excellent Electric Conductivity Performance

Easy to fill metal mesh 3-5um grooves/void(Silver Circuit Width )

Curing in low temperature in short time

According to the specific process technology of customers, differentiated customization

High adhesion to a variety of substrates or basic material

Excellent Electric Conductivity Performance

Excellent electric conductivity performance

Application

PHP9000-6F-A填缝银浆 TDS Rev 1.0

Process

PHP9000-6F-A填缝银浆 TDS Rev 1.0

Circuit Spacing and Width

PHP9000-6F-A填缝银浆 TDS Rev 1.0

Process

PHP9000-6F-A填缝银浆 TDS Rev 1.0

Circuit Spacing and Width

PHP9000-6F-A填缝银浆 TDS Rev 1.0

Material Trait

· Material Advantage

· Easy to fill metal mesh 3-5um grooves/void (Silver Circuit Width )

· Curing in low temperature in short time

· According to the specific process technology of customers, differentiated customization

· High adhesion to a variety of substrates or basic material

· Excellent electric conductivity performance

Specification

Application		Appled to PET,Glass basic material substrate
Specific	Color	Silver Gray Color
	Raw Material	High purity silver powder (purity>99.5% nanometer silver powder)
	Solid Content	75%-85%
	Viscosity	14000CP±5000CP (25℃ Antonpa MCR52)
	Density	2.5KG/L(25 Pounds per gallon)
	Volume Resistance	≦5X10-5Ω*cm
	Hardness	1H
	Adhesion	100/100
Curing Condition		Curing at 100 ℃ or above, the curing time can be reduced by increasing the curing temperature. For example, curing at 120 ℃ for 10 minutes; Curing at a constant temperature of 100 ℃ for 30 minutes, properly increasing the curing temperature prolonging the curing time will increase the conductivity and improve the dry film performance.

Application		Appled to PET,Glass basic material substrate
Specific	Color	Silver Gray Color
	Raw Material	High purity silver powder (purity>99.5% nanometer silver powder)
	Solid Content	75%-85%
	Viscosity	14000CP±5000CP (25℃ Antonpa MCR52)
	Density	2.5KG/L(25 Pounds per gallon)
	Volume Resistance	≦5X10-5Ω*cm
	Hardness	1H以上
	Adhesion	100/100
Curing Condition		Curing at 100 ℃ or above, the curing time can be reduced by increasing the curing temperature. For example, curing at 120 ℃ for 10 minutes; Curing at a constant temperature of 100 ℃ for 30 minutes, properly increasing the curing temperature prolonging the curing time will increase the conductivity and improve the dry film performance.
