PHP9000-3F-I Resin

click：

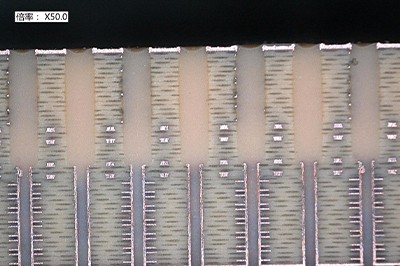

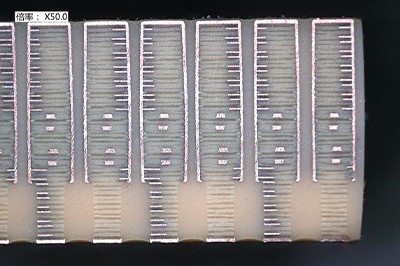

Product Introduction

PHP9000-3F-I resin is one halogen-free and environmentally friendly resin material, no organic solvents, are high-performance PCB via plugging functional resins, improve the performance of via plugging of high Tg low CTE CCL material application, low viscosity, especially can applied to ITC/MASS via plugging, high quality stability, in particular good for blind hole interconnection and good for via plugging of rigid-flex board, excellent hardness, easy to grinding, without dent and depression after plating, good flatness, no cracks, excellent SMT bonding and chemical corrosion resistance, and outstanding interconnection reliability of second plating copper .

Product Advantage

Single-Component Formula

High Electrical Conductivity

High Reliability

Excellent Adhesion Performance

Single-Component Formula

High Electrical Conductivity

High Reliability

Excellent Adhesion Performance

Application Field

PHP9000-3F-I is one kind of general standard via plugging via resin,can be used in FR4 PTH, specially dedicated for HDI PCB,Plating Over Filled Via Technology, Heavy Copper PCB, PKG Technology, Vertical via plugging technology.

Product Series

Technical Data Sheet

	Specification	Testing Method	Standard Reference	Test Result
1	Appearance	Visual Inspection	/	Light White Color
2	Solid Content	Termogravimetry	GB 1725-79	100%
3	Glass Transition	TMA（℃）	IPC-TM-650 2.4.24	140-170
3	Temperature	TMA（℃）	IPC-TM-650 2.4.24	140-170
4	Coefficient Of Thermal Expansion	TMA（＜Tg） α1（ppm）	IPC-TM-650 2.4.24	35-60
4	Coefficient Of Thermal Expansion	TMA（＞Tg） α2（ppm）	IPC-TM-650 2.4.24	90-110
5	260℃	TMA Thermal Analysis(%)	IPC-TM-650 2.4.24	1.4-1.7
	Overall Coefficient Of Thermal
	Expansion
6	Coefficient of Water Absorption	Gravimetric Analysis （%）	IPC-TM-650 2.6.2.1	≤0.15
7	Hardness	Pencil	IPC-TM-650 2.4.27.2	≥6H
8	Insulation Resistance	Voltage（Ω）	GB/T 10064-2006	1-3*10¹³
8	Insulation Resistance	Voltage（Ω）	GB/T 10064-2006	1-3*10¹³
9	Thermal Conductivity	Steady-State Analysis （W/m.k）	ASTM D5470-2012	0.5-0.7
10	Dielectric Constant	Separated Dielectric Resonance Test（5GHz）	ASTM-D15012	3.4-4.0
11	Dielectric Loss	100 cell test Adhesion +3M Tape	ASTM-D15012	0.01-0.02
12	Adhesion	100 cell test Adhesion +3M Tape	IPC-TM-650 2.4.1	100/100
13	Heat Resistance	Reflow Soldering Testing 260℃.60sec.3 Cycles	IPC-TM-650 2.1.1.2	Pass
13	Heat Resistance	Thermal Stress 288℃.10sec.5 Cycles	IPC-TM-650 2.6.8	Pass
14	Chemical Corrosion	10wt% NaOH 25℃*30min	IPC-TM-650 2.3.4.3	Pass
14	Resistance	10wt% NaOH 25℃*30min	IPC-TM-650 2.3.4.3	Pass
15	TCT Testing	-50℃/30min +150℃/30min	IPC-TM-650 2.6.7.2	Pass
15	TCT Testing	1000 Cycles	IPC-TM-650 2.6.7.2	Pass

	Specification	Testing Method	Standard Reference	Test Result
1	Appearance	Visual Inspection	/	Light White Color
2	Solid Content	Termogravimetry	GB 1725-79	100%
3	Glass Transition	TMA（℃）	IPC-TM-650 2.4.24	140-170
3	Temperature	TMA（℃）	IPC-TM-650 2.4.24	140-170
4	Coefficient Of Thermal Expansion	TMA（＜Tg） α1（ppm）	IPC-TM-650 2.4.24	35-60
4	Coefficient Of Thermal Expansion	TMA（＞Tg） α2（ppm）	IPC-TM-650 2.4.24	90-110
5	260℃	TMA Thermal Analysis(%)	IPC-TM-650 2.4.24	1.4-1.7
	Overall Coefficient Of Thermal
	Expansion
6	Coefficient of Water Absorption	Gravimetric Analysis （%）	IPC-TM-650 2.6.2.1	≤0.15
7	Hardness	Pencil	IPC-TM-650 2.4.27.2	≥6H
8	Insulation Resistance	Voltage（Ω）	GB/T 10064-2006	1-3*10¹³
8	Insulation Resistance	Voltage（Ω）	GB/T 10064-2006	1-3*10¹³
9	Thermal Conductivity	Steady-State Analysis （W/m.k）	ASTM D5470-2012	0.5-0.7
10	Dielectric Constant	Separated Dielectric Resonance Test（5GHz）	ASTM-D15012	3.4-4.0
11	Dielectric Loss	100 cell test Adhesion +3M Tape	ASTM-D15012	0.01-0.02
12	Adhesion	100 cell test Adhesion +3M Tape	IPC-TM-650 2.4.1	100/100
13	Heat Resistance	Reflow Soldering Testing 260℃.60sec.3 Cycles	IPC-TM-650 2.1.1.2	Pass
13	Heat Resistance	Thermal Stress 288℃.10sec.5 Cycles	IPC-TM-650 2.6.8	Pass
14	Chemical Corrosion	10wt% NaOH 25℃*30min	IPC-TM-650 2.3.4.3	Pass
14	Resistance	10wt% NaOH 25℃*30min	IPC-TM-650 2.3.4.3	Pass
15	TCT Testing	-50℃/30min +150℃/30min	IPC-TM-650 2.6.7.2	Pass
15	TCT Testing	1000 Cycles	IPC-TM-650 2.6.7.2	Pass
