Product Introduction

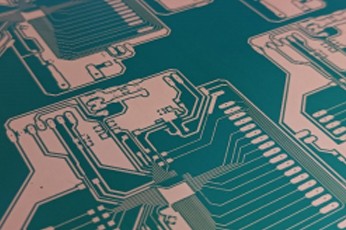

DIJ-AP Series Inkjet Circuit Printing Ink is the material and technology invented by Baroy Self-R&D independently, this ink it can rapid curing by mercury lamps, LED and other types of UV lamps , with excellent spraying performance, can well adapt to the continuous injection of industrial nozzles.
Product Advantage
Meet the EU RoHS and REACH standard, environmentally friendly and halogen-free
Good storage settling stability, and good inkjet stability performance
Excellent Printing Image Quality
Good resistance to plating and etching
Application Field
Instead of PCB dry film and wet film, PCB positive and negative film process, graded stepped gold finger, can be applied to phenolic PCB CEM series basic material, composite PCB basic material, glass fiber cloth FR4 PCB basic material and so on.
Product Series
Product PNs
DIJ -AP100
DIJ - AP100 EO
DIJ -AP200
Ink Color
Blue
Adaptable Nozzle
KM1024i MHE
KM1024i SHE
KM1800i SHC
Samba G3L
Application
PCB Copper Surface Printing Etching of Negative or Positive Film
PCB Copper Surface Printing,Selective Gold、Jard Gold Plating
Viscosity Cps 50℃
<14
<10
Surface Tension mN/m
32--34
>32
Particle Size nm
<500
<450
Pre-treatment Collocation
Chemical Cleaning
UV Energy
100-1000mj/cm2
Heat Curing
N/A
Surface Treatment
/
Immersion gold/Hard gold/ENEPIG
Reliability
10% sulfuric acid immersion for 30min without penetration, oil loss
Technical Data Sheet
Items
Testing Standard
Result
Plating Resistance
Circuit Width 6mil
Plating Impermeability is good when Ink Thickness 15-20m,
Immersion Gold Resistance
Pass
Etching Resistance
Jagged width less than circuits witch 1/5
Adhesion
3M Tape
Solvent Resistance
IPC-TM-650,2.3.42
